Sheet metal bending reshapes alloys without cutting or removing material, creating clean angles and curves. We use these components for many things, including structural supports and electrical enclosures. While the finished components may appear simple, shaping flat metal is anything but straightforward.

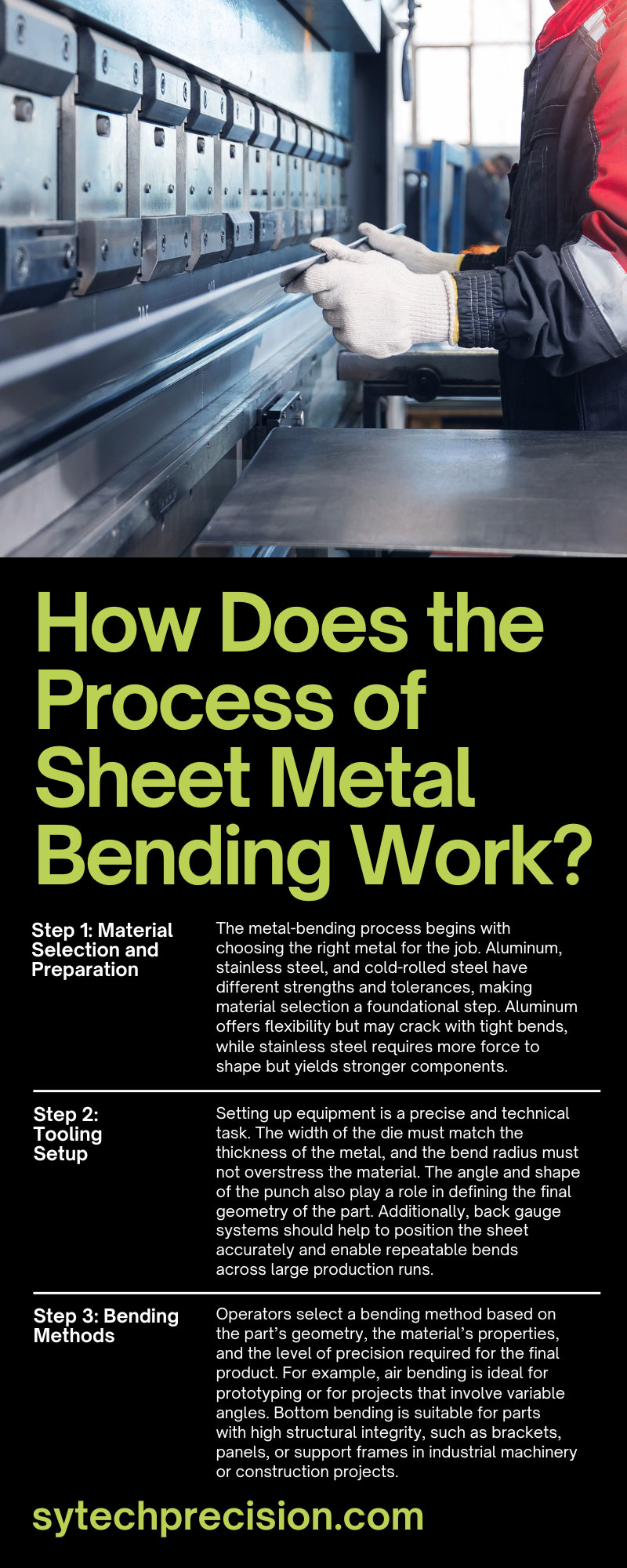

How does the process of sheet metal bending work? Let’s walk through the key steps, from material selection to equipment setup and forming, to gain a deeper understanding of the process.
Step 1: Material Selection and Preparation
The metal-bending process begins with choosing the right metal for the job. Aluminum, stainless steel, and cold-rolled steel have different strengths and tolerances, making material selection a foundational step. Aluminum offers flexibility but may crack with tight bends, while stainless steel requires more force to shape but yields stronger components.
After selecting the appropriate metal, sheets are cut to size and thoroughly cleaned. Debris, oils, or surface imperfections can interfere with the precision of the bend. A prepared sheet delivers cleaner results and consistent quality as the process moves forward.
Step 2: Tooling Setup
With the material ready, the next step is to configure the equipment that will perform bending. This typically involves a press brake—an industrial machine that curves sheet metal by pushing it between two dies. The upper tool, called the punch, moves downward into the sheet, which rests on the lower tool, known as the die. Together, they apply controlled force to shape the metal into the desired angle or form.
Setting up equipment is a precise and technical task. The width of the die must match the thickness of the metal, and the bend radius must not overstress the material. The angle and shape of the punch also play a role in defining the final geometry of the part. Additionally, back gauge systems should help to position the sheet accurately and enable repeatable bends across large production runs.
Modern press brakes have computer numerical control (CNC) systems, so operators can input fixed bend sequences and material data directly into the machine. Automation enhances repeatability, reduces setup time, and ensures consistency across production, which is crucial for operating at scale or with tight tolerances.
Small adjustments in the tooling setup can affect the final product. A misaligned die or an incorrectly set punch angle can lead to bends that are too shallow, too sharp, or inconsistent from piece to piece. Expert operators conduct thorough test bends and meticulously calibrate machines before transitioning to full production.
Step 3: Bending Methods
After the tooling is in place, the bending begins. The most common method is air bending, where the punch pushes the metal into the die without forcing it to conform completely to the die shape. This method offers greater flexibility in achieving various angles, but it may require careful calibration.
In contrast, the bottom bending presses the metal fully against the die, producing more precise and repeatable angles. For applications requiring accuracy, coining employs more force to imprint the bend and minimizes springback. Less common but still useful techniques are folding or wipe bending, which apply pressure along the edge of the sheet to create shapes.
Operators select a bending method based on the part’s geometry, the material’s properties, and the level of precision required for the final product. For example, air bending is ideal for prototyping or for projects that involve variable angles. Bottom bending is suitable for parts with high structural integrity, such as brackets, panels, or support frames in industrial machinery or construction projects.
Step 4: Springback and Tolerances
After bending, the metal doesn’t always hold its shape. Unbending, also known as springback, is a natural response as the material attempts to return to its original shape of sheet metal. The amount of springback depends on the type of metal, its thickness, and the bend radius. For example, high-strength steels tend to spring back more than softer materials, such as aluminum.
Skilled fabricators anticipate this behavior by adjusting the angle of the bend or using specialized techniques, such as overbending, to compensate. In more advanced applications, simulation software can predict the amount of springback that will occur and program the press brake accordingly.
Maintaining tight tolerances is crucial for creating enclosures, frames, or interlocking components. Even a slight variation of a few degrees can cause assembly issues. Controlling springback is a fundamental step in confirming that parts meet design specifications.
Step 5: Quality Checks and Finishing
After the bending process is complete, each part undergoes inspection. This includes checking angles, dimensions, and alignment using calipers, angle gauges, and coordinate measuring machines. Quality checks are particularly important for consistency across high volumes of production.
In some cases, the bending process introduces small imperfections, such as burrs or surface marks. Manufacturers follow finishing steps, such as deburring, sanding, or applying protective coatings, to make certain the final part not only functions properly but also meets cosmetic and safety standards.
If the component will be part of a welded assembly or a finished product, it may proceed to additional processes, such as joining, powder coating, or integration with other parts. These final steps prepare the bent sheet metal for real-world use, from consumer electronics manufacturing to industrial enclosure construction.
Step 6: Process Insight Into Action
Understanding how the process of sheet metal bending works can encourage you to make smarter decisions when your processes rely on precision, durability, and efficiency. When you know how materials, tooling, and technique come together, you are better equipped to plan ahead, reduce costly revisions, and bring higher-quality products to life.
